Alien Higgs 3

The Alien Higgs 3 chip is one of the most widely used UHF RFID integrated circuits in the RFID industry. Designed by Alien Technology, the Higgs® 3 IC provides excellent read performance, large memory capacity, and strong compatibility with global RFID standards.

As a high-performance UHF RFID tag Chip, Alien Higgs 3 is commonly used in logistics, warehouse management, retail inventory tracking, asset management, baggage handling, and supply chain automation.

This article explains the features, specifications, applications, and datasheet overview of the RFID Card EPC Class 1 Gen 2 UHF IC Higgs® 3.

1. What Is Alien Higgs 3?

The Alien Higgs 3 is a passive UHF RFID chip designed for EPC Gen2 RFID systems. It operates in the global UHF frequency range from 860 MHz to 960 MHz and complies with:

• EPCglobal Class 1 Gen 2
• ISO/IEC 18000-6C standards

The chip is highly integrated and includes large non-volatile memory, making it suitable for advanced RFID applications.

2.RFID Card EPC Class 1 Gen 2 UHF IC Higgs® 3

The RFID Card EPC Class 1 Gen 2 UHF IC Higgs® 3 is widely used in RFID cards, labels, hard tags, and smart tracking systems.

Key Features

• Worldwide UHF operation (860–960 MHz)
• EPCglobal Gen2 compliant
• Long read range up to 10 meters
• Large memory capacity
• High read sensitivity
• Low power consumption
• Unique factory-programmed TID number

The Higgs 3 IC is especially popular in applications requiring high-speed data collection and reliable long-distance reading.

3.Higgs 3 IC Datasheet Overview

According to the official Higgs 3 IC Datasheet Overview, the chip offers powerful RFID performance with flexible memory architecture.

Memory Structure

Memory Type	Capacity
EPC Memory	96 bits expandable to 480 bits
User Memory	512 bits
TID Memory	64 bits
Access Password	32 bits
Kill Password	32 bits

The total memory capacity reaches 800 bits of non-volatile memory.

3.1 EPC Memory

The EPC memory stores the Electronic Product Code used for product identification and tracking.

Alien Higgs 3 supports:

• Standard 96-bit EPC
• Expandable EPC up to 480 bits

This flexibility is ideal for industries requiring larger data storage capacity.

3.2 User Memory

The chip includes 512 bits of user memory for storing additional information such as:

• Manufacturing records
• Service history
• Product authentication data
• Logistics information

The memory can also be permanently locked or password protected in blocks.

3.3 Unique TID Number

Every Alien Higgs 3 chip contains a factory-programmed 64-bit unique TID (Tag Identifier).

This serial number cannot be modified, helping improve security and anti-counterfeiting performance.

4.UHF RFID Tag Chip Performance

The Alien Higgs 3 UHF RFID Tag Chip is known for excellent RF sensitivity and long read distance.

Performance Specifications

Feature	Specification
Frequency	860–960 MHz
Read Range	Up to 10 meters
Read Sensitivity	Up to -18 dBm
Write Sensitivity	Up to -13.5 dBm
Standard	EPC Class 1 Gen 2

The chip performs well even in challenging RF environments.

5.Main Applications of Alien Higgs 3

The Alien Higgs 3 IC supports a wide range of RFID applications.

5.1 Supply Chain Management

RFID tags using Higgs 3 chips help companies track products throughout the supply chain.

Benefits include:

• Faster inventory counting
• Real-time visibility
• Reduced human errors
• Improved logistics efficiency

5.2 Asset Tracking

Businesses use Alien Higgs 3 tags for tracking:

• IT equipment
• Industrial tools
• Warehouse assets
• Medical devices

The long read range makes large-scale asset management easier.

5.3 Retail Inventory Management

Retail stores use UHF RFID Tag Chips to automate inventory control.

Advantages include:

• Faster stock checks
• Reduced shrinkage
• Improved product visibility
• Smart shelf management

5.4 Baggage Tracking

Airports and logistics companies use Alien Higgs 3 RFID tags for baggage and parcel tracking.

The chip’s fast reading speed improves sorting efficiency and reduces lost items.

5.5 Product Authentication

Alien Higgs 3 supports Dynamic Authentication™ technology, which helps prevent counterfeiting.

This feature creates a unique “fingerprint” for tagged products.

6. Advantages of Alien Higgs 3 RFID Chips

Excellent Read Performance

The chip offers strong sensitivity and stable long-range reading.

Large Memory Capacity

Compared with many standard RFID chips, Higgs 3 provides larger EPC and user memory.

Global Compatibility

The chip supports worldwide UHF RFID standards and frequencies.

Low Power Operation

Alien Higgs 3 can operate efficiently at low RF power levels, helping improve reader performance.

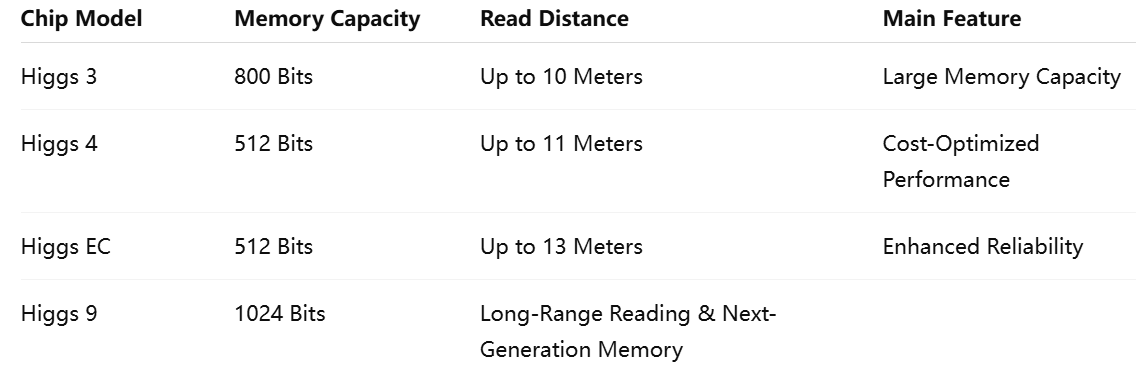

7.Alien Higgs 3 vs Other Higgs Series Chips

Alien Technology offers several RFID chip models in the Higgs series.

8.Why Choose Alien Higgs 3?

Many RFID solution providers choose Alien Higgs 3 because it combines:

• High sensitivity
• Large memory
• Strong compatibility
• Long reading range
• Reliable performance
• Competitive cost

It is considered one of the most trusted UHF RFID chips for industrial and commercial RFID projects.

9. Conclusion

The Alien Higgs 3 is a powerful and reliable RFID Card EPC Class 1 Gen 2 UHF IC widely used in modern RFID systems. With 800 bits of memory, excellent read sensitivity, and support for EPCglobal Gen2 standards, it provides outstanding performance for asset tracking, logistics, retail, and product authentication.

As a high-performance UHF RFID Tag Chip, Alien Higgs 3 continues to be a popular choice for businesses seeking efficient and scalable RFID solutions worldwide.
