RFID Label

  • Smart MINIWEB Paper Label
  • Smart MINIWEB Paper Label
  • Smart MINIWEB Paper Label
Smart MINIWEB Paper LabelSmart MINIWEB Paper LabelSmart MINIWEB Paper Label

Smart MINIWEB Paper Label

  • Item: SRU4520R6
  • MOQ: 5000PCS
  • Price: 0.035~0.065$/PC
  • Lead Time: 10~20 days
  • Product description: RFID labels, also called smart labels and most common types of passive RFID tags, are paper or plastic (usually vinyl) labels that include an embedded RFID inlay.
  • INQUIRY

Radio-frequency identification (RFID) uses electromagnetic fields to automatically identify and track tags attached to objects. The tags contain electronically stored information. Passive tags collect energy from a nearby RFID reader's interrogating radio waves. Active tags have a local power source (such as a battery) and may operate hundreds of meters from the RFID reader. Unlike a barcode, the tags don't need to be within the line of sight of the reader, so it may be embedded in the tracked object. RFID is one method of automatic identification and data capture.

Physical Specification

Item

SRU4520R6

Dimension

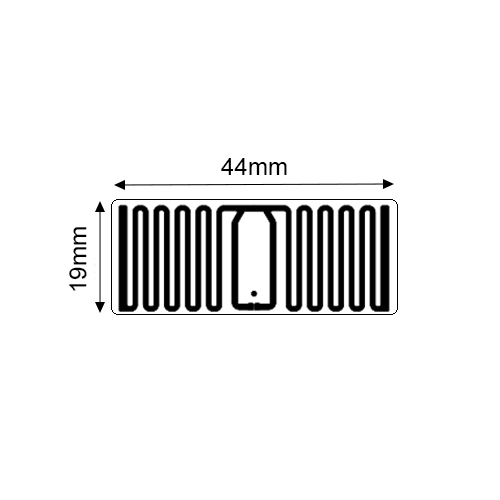

41*16mm(Antenna), 45*20mm(label)

Face Stock

Printable paper, PET, PP

Weight

0.02g

Adhesive

Permanent adhesive

Core Inner Diameter

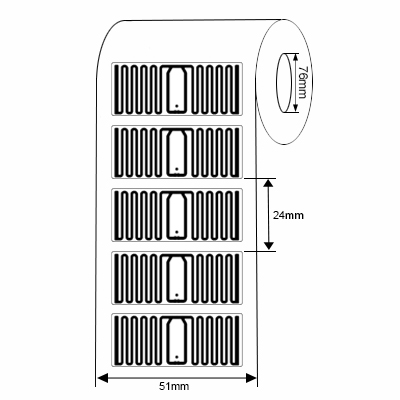

76mm

Packing Detail

2500pcs/Reel

Functional Specification

Frequency

860-960MHz

Protocol

EPC global C1 Gen2,ISO18000-6C

Chip

Impinj Monza R6 or Monza R6-P

Memory

EPC 96bits/128bits, TID 48bits,User 0bits

Data Retention

50 years

Write Endurance

100,000 recycles

Reading Range

Up to 5-7 meter

Environmental Specification

Feature

Batch reading

Mounting Methods

Self-Adhesive

Working Temperature

-40~+85

Storage Temperature

-40~+85

Humidity

20%~60%RH

Application

Apparel hangtag, Foot wear management, Non-metallic surface, etc.
